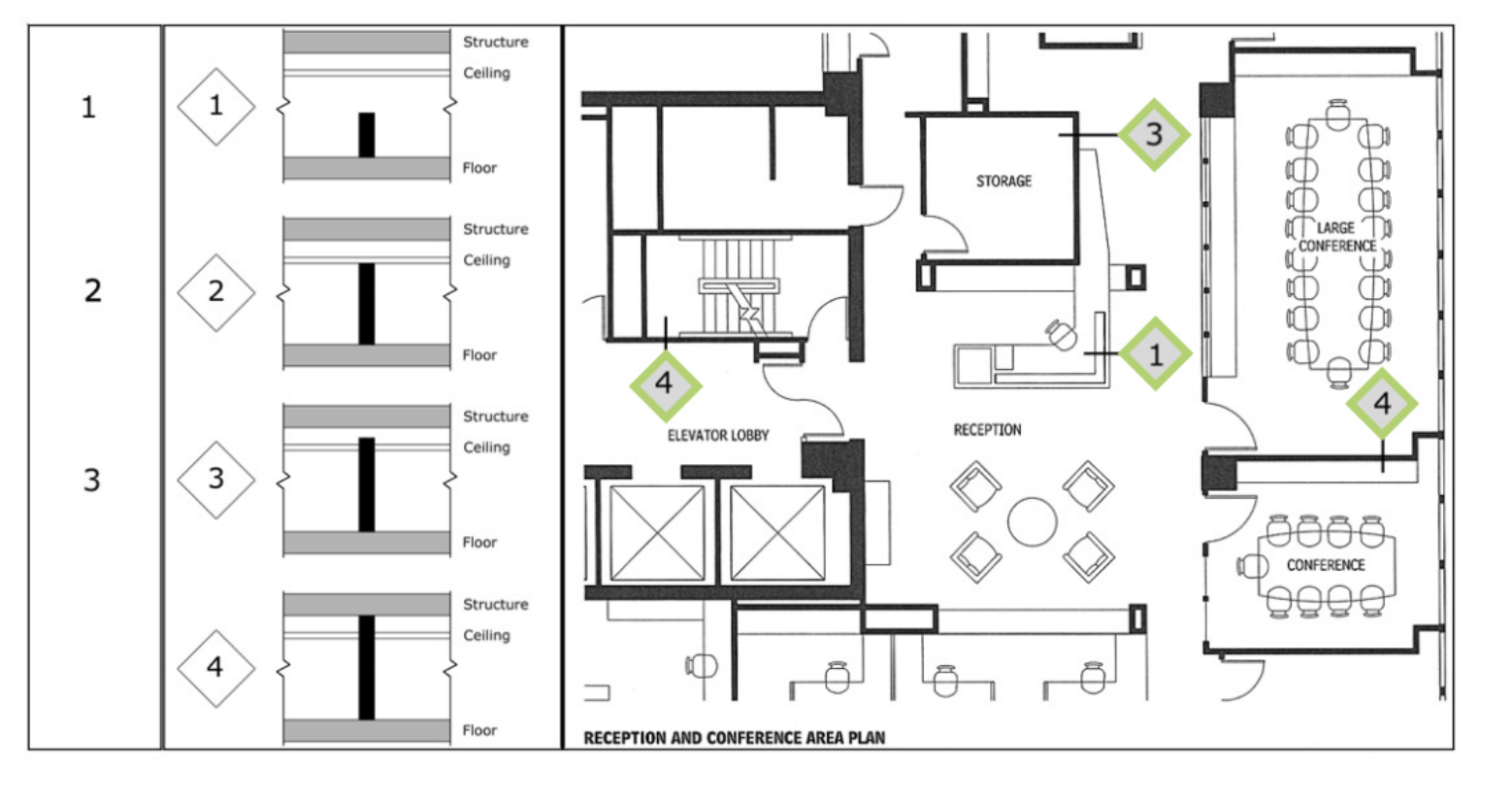

PPD Wall Type Diagram



  • Avatar
    Gang Chen

    A basic rule of thumb is partial height walls will let sound passes from one room to another, and any opening in walls will do the same. To have good sound insulation, you need to have full-height wall to the underside of the structure, and seal off any openings in walls. Adding batt or rigid insulation to the walls will help greatly too.

    Gang Chen, Author, AIA, LEED AP BD+C (GreenExamEducation.com)

    Comment actions Permalink
  • Avatar
    Kathleen Hogan

    follow up question: when would you ever use Wall Type 2?
