road gutter map from ballast

Comments

6 comments

  • Avatar
    Kevin Griendling

    Xu Teng,

    Trying to visualize this in 3D will help. I mocked up a quick model for you to review. If you want a "crown" it would have to go up and away. The "higher elevation line" extending forward means a rise along the centerline of the road. See below:

    If you were to reverse it, it would create a concave valley along the centerline and all the water would run down the middle of the street (which is actually used frequently in zero curb alleys, backstreets, and roads where curbs are not possible).

    Good luck,



    Kevin Griendling, AIA

    http://xQ.intersectartsstudio.com

    https://app.pluralsight.com/profile/author/kevin-griendling

    0
    Comment actions Permalink
  • Avatar
    xu teng (Edited )

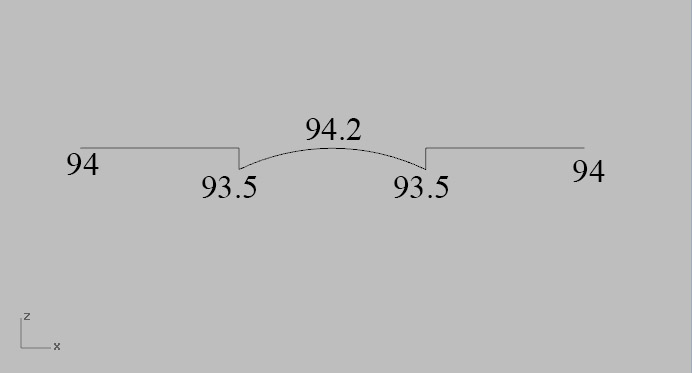

    Thank you for your reply. i am not sure if i am right. From your front pic, i can see the section of the road, if i mark the elevation of them, they are of different height, as you can see (the numbers are just made up for illustration). And to put them on the contour map, it is inverse relationship with contour slope line, am i right?



    0
    Comment actions Permalink
  • Avatar
    Kevin Griendling

    Xu Teng,

    That is correct.



    Kevin Griendling, AIA

    http://xQ.intersectartsstudio.com

    https://app.pluralsight.com/profile/author/kevin-griendling

    0
    Comment actions Permalink
  • Avatar
    Kevin Griendling

    Xu Teng, actually let me more clear. The single line in the front view is a SECTION cut through the road. NOT a contour line.



    Kevin Griendling, AIA

    http://xQ.intersectartsstudio.com

    https://app.pluralsight.com/profile/author/kevin-griendling

    0
    Comment actions Permalink
  • Avatar
    xu teng (Edited )

    yes, i see. Thank you

    0
    Comment actions Permalink
  • Avatar
    Gang Chen

    One tip to understand contour lines and grading problems is that water always flows from a higher contour line to a lower contour line in a direction perpendicular to the higher contour line. So, for a ridge, water is flowing away from the centerline of the ridge. For  a valley or a swale, the water is flowing toward the centerline of the valley.

    Gang Chen, Author, AIA, LEED AP BD+C (GreenExamEducation.com)

    0
    Comment actions Permalink
