    Jennifer Schuler

    Hi Sofia, I do recall seeing how to calculate dew point in the Amber Videos, Thermal Section. Let me look back through my notes and see what I can find..

    Curious, this seems like too detailed of a question for PDD since the calculation is not provided in the NCARB recommend formulas which I assume would be under the HVAC section. Maybe NCARB or someone who has taken and passed PDD can comment if its worth spending the time to research..

    More soon. Good luck studying!

    Jenn

    0
    Comment actions Permalink
  • Avatar
    Cristina Martin

    Hi Jennifer, if you have any luck finding that information on how to calculate the dew point that would be greatly appreciated as I am having trouble finding it as well.  Thanks!

    0
    Comment actions Permalink
  • Avatar
    Michael Ermann

    Sofia, Jennifer, and Cristina,

    I think you are asking how to calculate the temperature at a point inside a wall cavity (not the dew point inside a wall cavity). The formula for that is

    Temperature at a point in a wall: Toutside + [(Rvalue outside of point in wall/Rvalue total) x ΔT]

    Jennifer, you are correct: an animated explanation is in the Amber Videos (pretty sure it is in the Bonus Questions section).--Michael Ermann, Creator of the Amber Book. Good luck!

    0
    Comment actions Permalink
  • Avatar
    Cristina Martin

    Thank you Michael!

    0
    Comment actions Permalink
  • Avatar
    Sofia Salvat Mere (Edited )

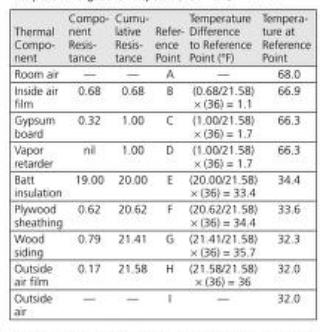

    Michael Ermann If we are presented with this table in MEEB, do we use Component Resistance or Cumulative Resistance to calculate R?



    0
    Comment actions Permalink
  • Avatar
    Gregory Brown

    Sofia,

    The Cumulative Resistance = sum of assemblies @ said reference point only.

    The Component Resistance = sum of one building material assembly.

    So when calculating a walls total R-value you need to add each Component Resistance value + Outside and Inside air film.

    I couldn't resist in helping as I noticed know one provided the answer to your question.

    Good luck

    0
    Comment actions Permalink
  • Avatar
    Sofia Salvat Mere

    Thank you, Gregory! I actually set up some practice questions today and figured this out as well. Thank you for confirming it.

    0
    Comment actions Permalink
  • Avatar
    William Anderson

    Sofia, can you share your practice questions for this?

    0
    Comment actions Permalink
