NCARB BPRACTICE EXAM MULTIDIVISIONS

Follow

Yvette Louka

January 14, 2023 16:52

Please NCARB advise on this.

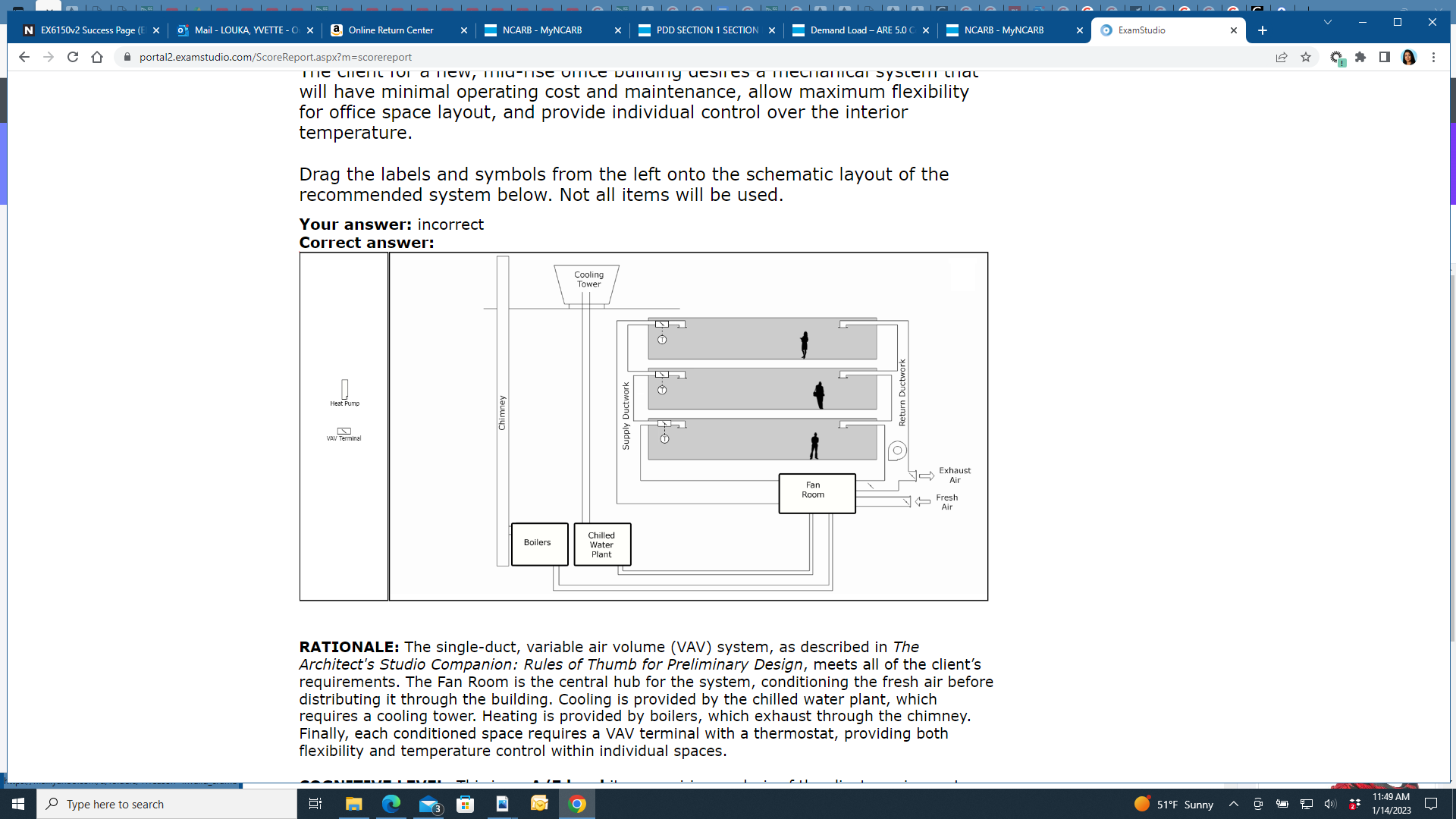

I did place a thermostat in each unit as required but not exactly in this spot, I placed them under the duct opening, I did not think this will be a reason for my question to be marked as the wrong answer?

Please advise.

Thank you



0

•

  NCARB January 18, 2023 14:58 (Edited January 18, 2023 17:01)

  Hello Yvette,

  The VAV Terminal with Thermostat would need to be left of the supply diffuser in the diagram because that VAV terminal would need to be located in-line with the supply duct prior to reaching the diffuser. The Architect's Studio Companion's section on VAV systems gives a good explanation of how those systems work.
